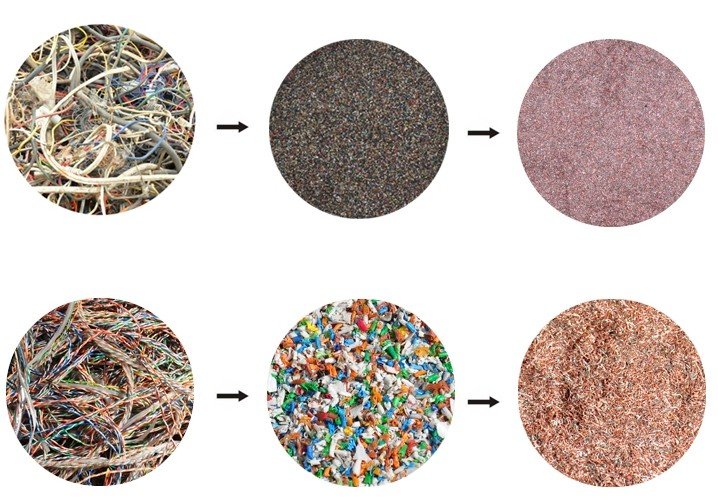

Copper wire crusher (also named waste electric wire and cable recycling equipment) is a kind of machinery used to crush waste copper wire and separate copper and plastic. Since the copper separated seems like rice grains, the machine is also called copper wire crusher, which is one of environment-friendly type equipment Parameters of Copper Wire Crusher: Appliance : Kinds of waste cable wire/copper wire/communication wire/telephone wire/single or multi strand wire/other kinds of cable wire.

Capacity of copper wire recycling machine from 200-1000kg/h for customer choose Characters: 1:Our company developed the crude crusher/crusher/electrostatic separator have a strong innovative,advanced and reasonable reusing of resource.
2:Lower noise, bigger capacity,stronger innovative, not only could recycling copper keep the original ,but also recycle plastic.
3:Whole system is combined multi machine to recycle metal and plastic . Assembled with automate conveyor/devoise device
4:Dust catching system adapted with triple dust catching system ,cyclone dust catching/bag dust catching/air classifier dust catching , no any pollution Technical parameters: Name | Model | Power | QTY (PCS) | Dimension |
Crusher | SX-600 | 30KW | 1 | 2.1*1.6*2.2m |
Belt conveyor | SX-500 | 1.1KW | 1 | 2.5*0.8*1.2m |
Vibrating screen | SX-800 | 0.75KW | 2 | 2*1*1.5m |
Cyclone | SX-800 | \ | 1 | 1*1*4m |
Dust catcher | SX-1500 | 1.1KW | 3 | 1.5*1.5*5.5m |
Fan | \ | 1.1KW | 1 | \ |
Outlet | 200-300kg/h |
Total power | 37KW |
Area | 50㎡ |
